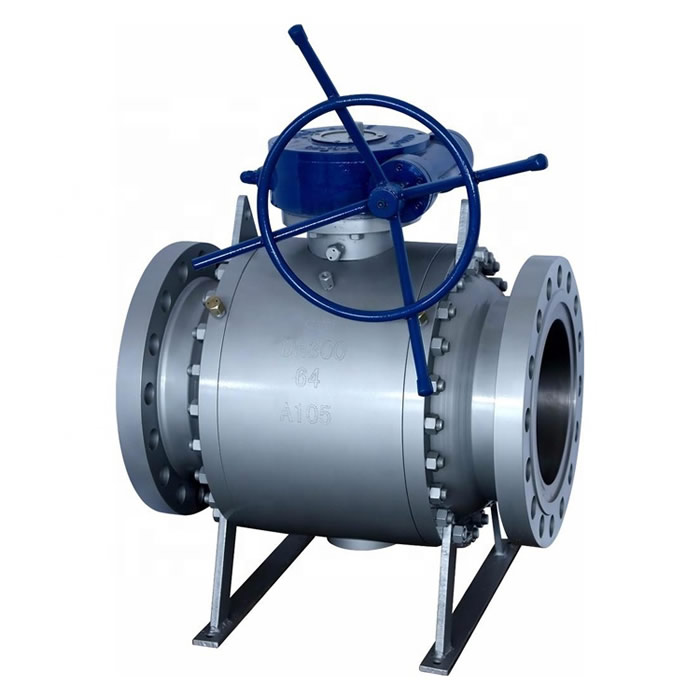

Trunnion Mounted Ball Valve
- Design Standard
- Based on API 6D and Customer requirements
- Temperature Range
- -150 to 662°F (-101 to 350°C)
- Size
- NPS 1-56 (DN 25-1400)
- Pressure Rating
- ASME 150 - ASME 2500
- End Connections
- As per API 6D standard
Features of forged trunnion ball valves are as follows:
1) Anti-fire safe design: API 6FA, API607
2) Anti-static device
The static-conduction spring is set between the stem and the ball, the stem and the body. Thus static electricity is conducted to ground and system safety is secured.
3) Anti-blow out design
4) Free leakage of body Sealed construction
The connective position of valve body and bonnet is double sealed by gasket and O-ring, on this base, such factors as fire, high temperature, shock and uneven opening or closing of the torque all can’t induce external leakage
5) Low torque in operation
6) Double block&bleed(DBB)
7) Emergency sealing
8) Automatic body cavity relief
When the body pressure going up un-normally as the unstable factor, the trunnion ball valve downstream seat will be pushed by un-normal pressure, and the release the un-normally pressure automatically, it doesn’t damage to the sealing of upstream seat.
9) The valve structure can be 2 pieces or 3 pieces.
| FUNCTIONS | PARAMETERS |
|---|---|
| Item Name | Forged Floating Ball Valve |
| Size | DN15~DN250; 1/2″~10″ |
| Pressure | Class150~2500（PN16~PN420） |
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex, Superduplex, Inconel, Monel etc |
| End Connection | RF,RTJ, BW, THR,SW |
| Fire safe design | API 607, API 6FA |
| Type | Bolted Body, Threaded Body, Top Entry, Double Block and Bleed |
| OEM/ODM Service | Available |
| Payment&Shipping Terms | L/C; T/T(30% deposit, 70% against B/L copy) |
| Shipping Port | Any port in China |
