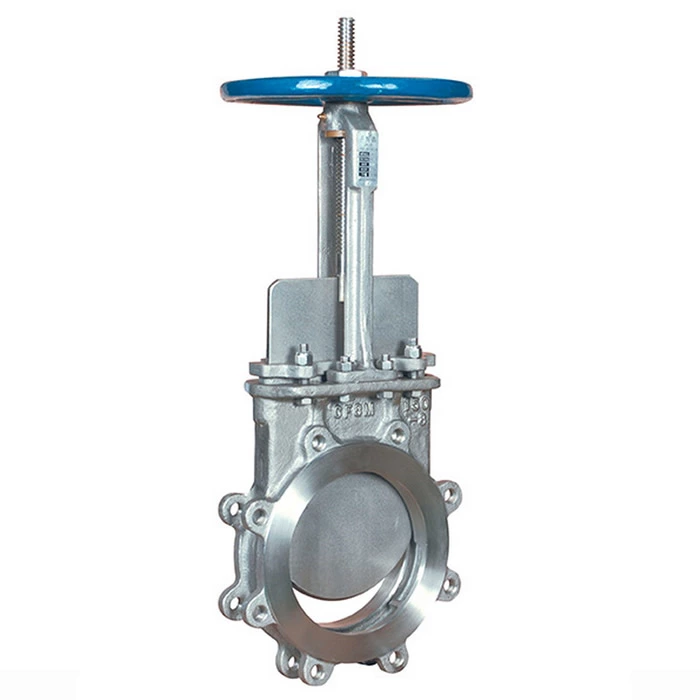

Knife Gate Valve

Design Standard
API 600, ASME B16.34, GB/T 12234
Temperature Range
CLB150~CL300 PN10~PN25
NPS 2′′~NPS 48′′ DN50~DN1200
Pressure Rating
-29°C - 650°C
Knife Gate Valve

Specification parameters

Name Knife Gate Valve
Size NPS 2′′~NPS 48′′ DN50~DN1200
Pressure CLB150~CL300     PN10~PN25
Temperature -29-650°C
Applicable media Syrup, pulp, sewage, coal slurry, ash, slag water mixture, etc.
Body Material carbon steel, stainless steel, alloy steel

Design Specification

Design Standards API 600, ASME B16.34, GB/T 12234
Structure length ISO14313/API 6D, ASME B16.10, GB/T 12221, DL/T 53
Connection Standard ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF, BS
Pressure test API 6D, API 600, API 598, GB/T 13927, GB/T 26480, JB/T 9092, JB/T3595
pressure and temperature rating ASME B16.34, GB/T 12224

Product Description

knife type gate valve has the advantages of simple and compact structure, reasonable design, light material, reliable sealing, light and flexible operation, small size, smooth passage, small flow resistance, light weight, easy installation and easy disassembly. The working pressure is 1.0MPa-2.5MPa, and the working temperature is normal when the temperature is -29-650°C. The knife-type gate valve has a shearing function, which can scrape off the adhesive on the sealing surface and automatically remove debris. The stainless steel gate can prevent sealing leakage caused by corrosion.

Ordering Information:

1. When purchasing, the user must indicate the standard diameter, pressure and valve connection required for the valve. If not specified, the size is given in the specification;

2. If there are special requirements for the required valves, special parameters such as special size and special materials must be specified. If not specified, the materials shall be manufactured according to the company's regulations;

3. The valve drive unit has no special instructions and is configured according to the regulations of our factory;

4. The user provides the medium, temperature and pressure of the valve, which is selected by the factory;
